StealthMACsec

IEEE 802.1AE MACsec Engine With Advanced Side-Channel Countermeasures

Secure Ethernet networks with industry leading MACsec implementation featuring advanced side-channel countermeasures, automatic SA lifecycle management, and scalable multi peer architecture.

Up to 10 Gbps
Throughput
1B+
Trace SCA Resistance
1-512
Scalable SAs
📄 Open StealthMACsec Product Brief PDF

StealthMACsec Architecture

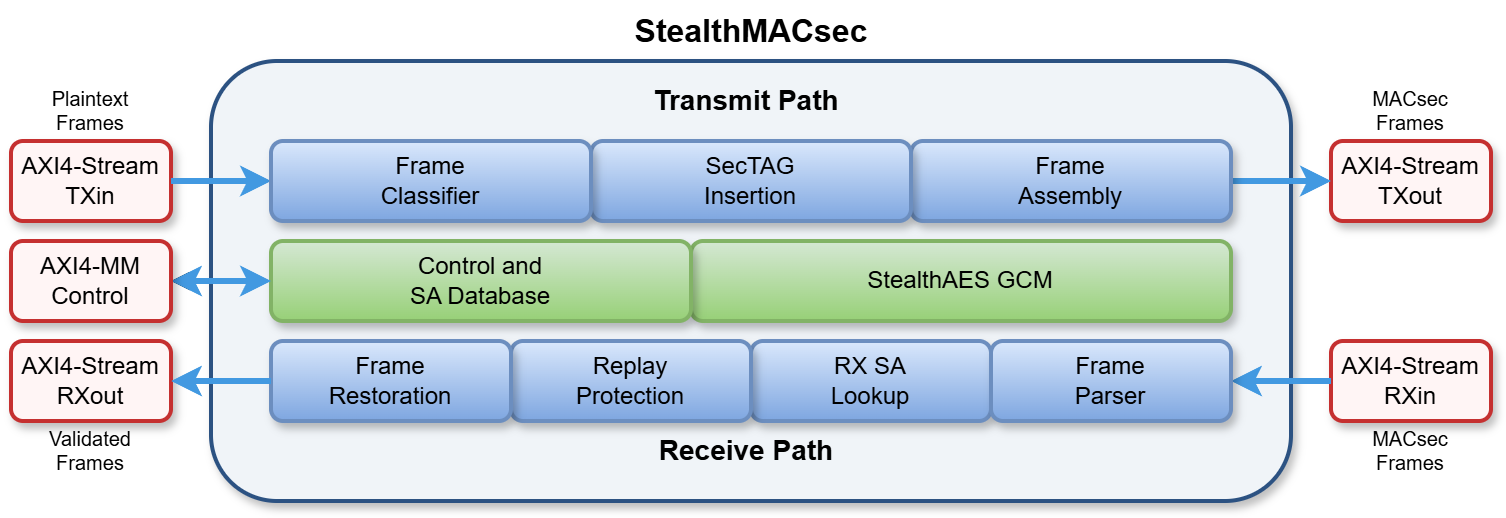

StealthMACsec Architecture Diagram

Four AXI4 Stream interfaces with configurable width (32/64/128-bit) for seamless integration

Key Features

IEEE 802.1AE-2018 Compliant

Full MACsec implementation with GCM-AES-256 cipher suite, ensuring complete standards compliance for secure Ethernet communications.

Advanced SCA Countermeasures

Industry leading side-channel resistance inherited from our proven StealthAES engine, protecting against sophisticated attack vectors.

Scalable SA Architecture

Single TX SA with 1-N RX SAs (up to 512) supporting complex multi-peer network topologies with automatic SA management.

Hardware Replay Protection

Per SA packet number validation with hardware-based tracking for robust protection against replay attacks.

AXI4 Stream Interfaces

Four standardized data path interfaces with configurable width (32/64/128-bit) for seamless FPGA and ASIC integration.

Automatic SA Management

Seamless TX SA rollover and lifecycle management with configurable SA database supporting 8-512 security associations.

Performance and Resource Utilization

FPGA Platform Max Frequency Throughput Resources
Xilinx UltraScale+ 200 MHz 1-10 Gbps 16K-44K LUTs
Microchip PolarFire 100 MHz 0.8-5 Gbps 23K-68K LUTs
Intel Agilex 5 180 MHz 1-9 Gbps 17K-52K LUTs

Architecture Overview

Transmit Path

  • Frame classification and protection
  • SecTAG insertion with SCI
  • GCM-AES-256 encryption
  • ICV generation and appending
  • Automatic PN management

Receive Path

  • MACsec frame parsing
  • Multi SA lookup (SCI+AN)
  • Hardware replay protection
  • GCM-AES-256 decryption
  • Frame validation and output

SA Management

  • Configurable SA database (8-512)
  • TX SA lifecycle with rollover
  • Multi peer RX SA support
  • Hardware PN tracking

Interface Specifications

  • Four AXI4 Stream interfaces
  • Configurable 32/64/128-bit width
  • TLAST frame delimiters
  • AXI4 Lite control interface
  • Statistics and error monitoring

Applications

Embedded Systems

  • Inter-module communications
  • Ethernet-connected sensor arrays
  • Distributed system protection
  • Industrial automation

Defense and Aerospace

  • Secure backplane links
  • Secure sensor fusion
  • Cross-domain data protection
  • Tactical data link gateways

Critical Infrastructure

  • Control system protection
  • Multi-peer secure networks
  • Real-time data security
  • Point to point connections
